It can record
Supported codes, status, readiness, freeze-frame, and selected live parameters.
Visual scanner-use guide
Different vehicles. Different diagnostic interfaces.
Use a compatible Bluetooth or heavy-duty diagnostic interface to collect evidence, not to replace a diagnosis, prove safety, or authorize a repair.
Illustrative and educational only. Dimensions are approximate examples, not purchasing specifications. Compatibility, accessible modules, code definitions, legal requirements, and safe procedures vary by vehicle, model year, region, adapter, and application.

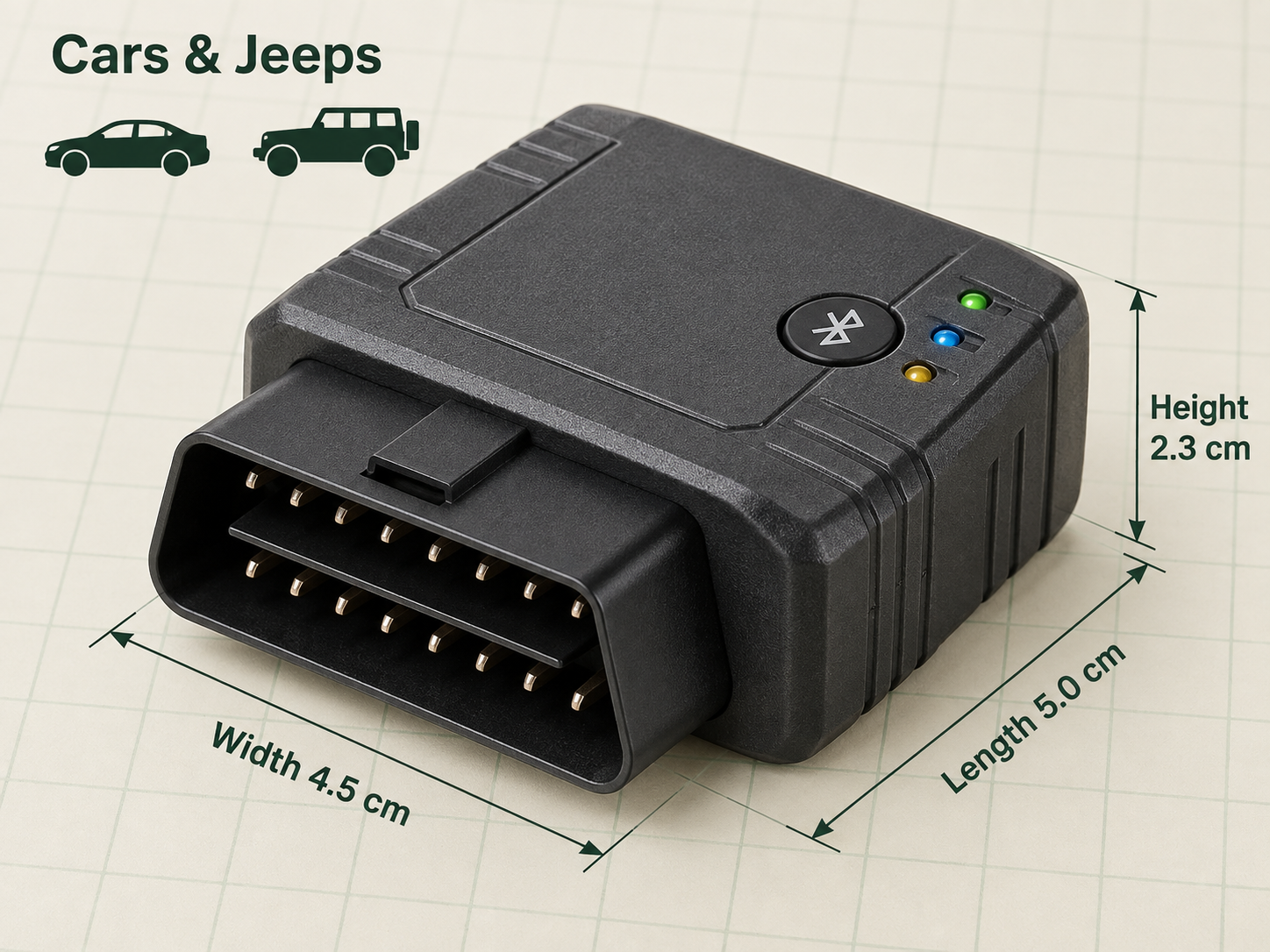

Cars and SUVs
Cars and SUVs: use the right interface within its limits
Use standardized powertrain evidence as one input alongside symptoms, records, a physical inspection, and vehicle-specific service information.
- Confirm the adapter and app support the vehicle
- Scan while parked and record stored, pending, and permanent status
- Capture freeze-frame and readiness before clearing
- Compare evidence with symptoms and history
- Escalate safety-critical or unresolved conditions

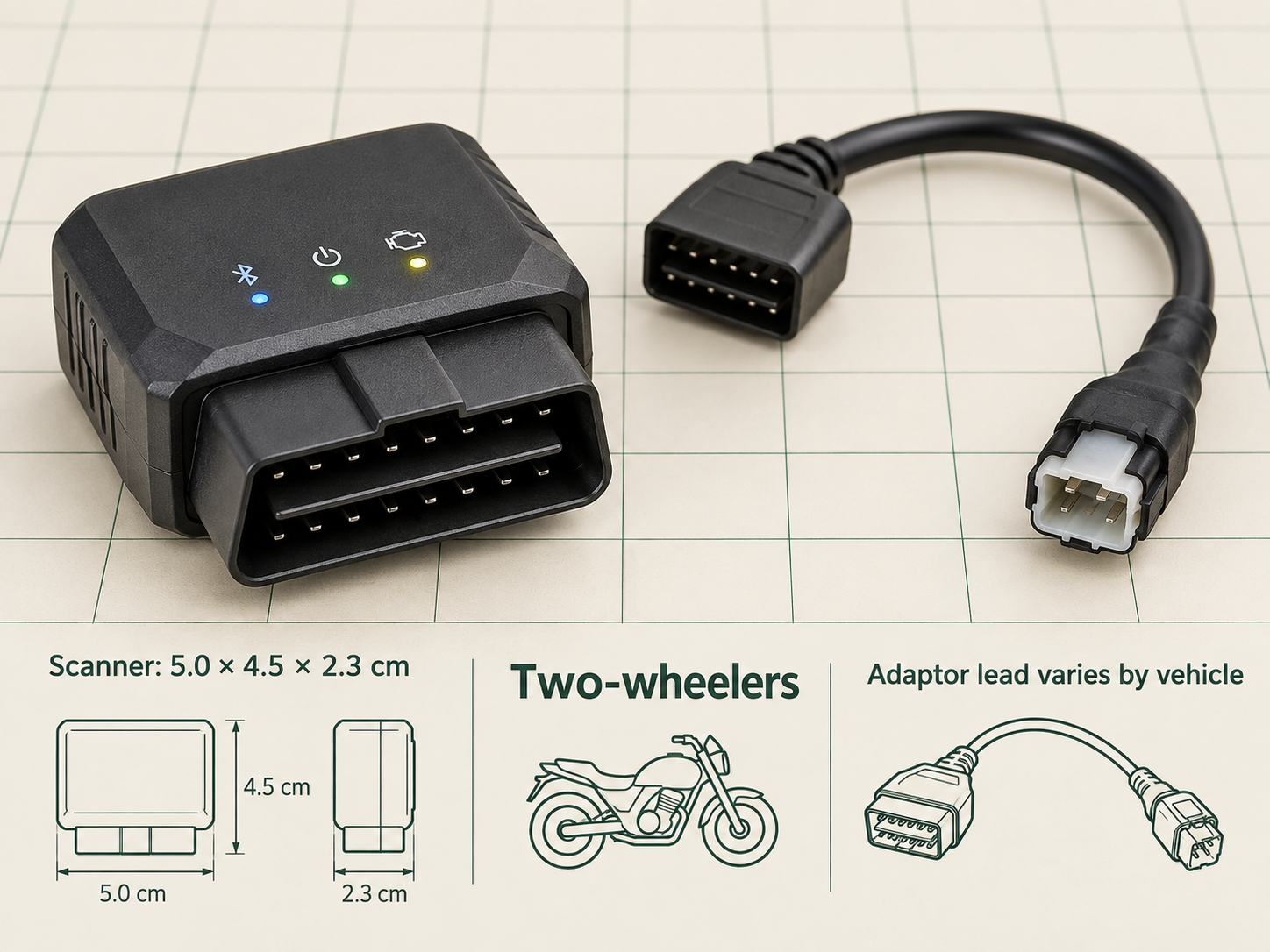

Motorcycles
Motorcycles: use the right interface within its limits
Connector shape, protocol, adapter leads, and manufacturer service-code access vary widely. Generic car coverage must not be assumed.
- Confirm the correct connector and lead
- Obtain owner or rental permission
- Record charging voltage and stored service codes
- Inspect vibration-prone connectors physically
- Use model-specific service information

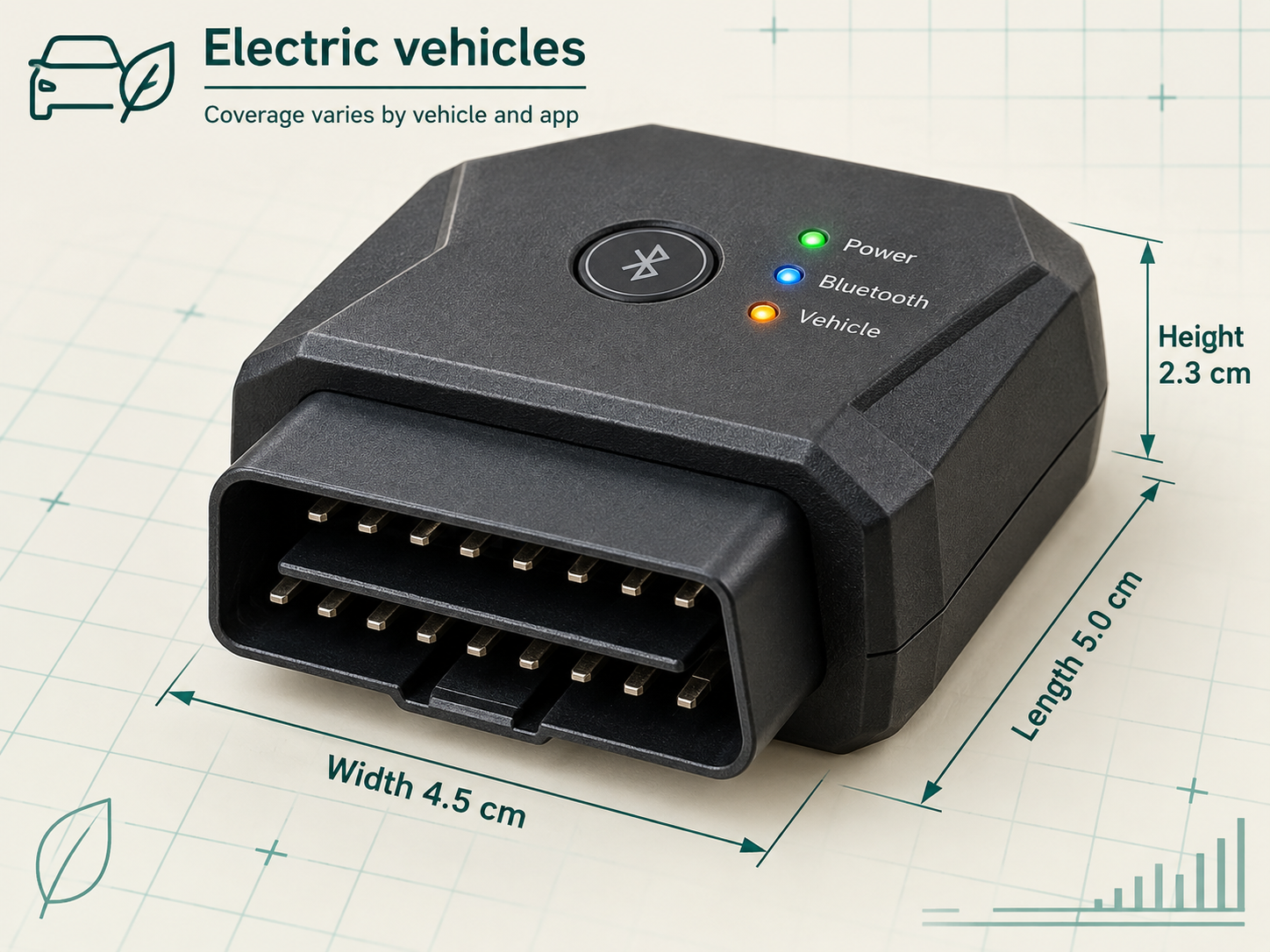

Electric vehicles
Electric vehicles: use the right interface within its limits
A generic scanner may expose emissions or gateway information but not traction-battery health, isolation status, or every high-voltage module.
- Confirm EV-specific coverage
- Never work on high-voltage systems without qualification
- Record charging, temperature, and range context
- Treat gateway codes as starting points
- Escalate isolation, smoke, heat, or red warnings

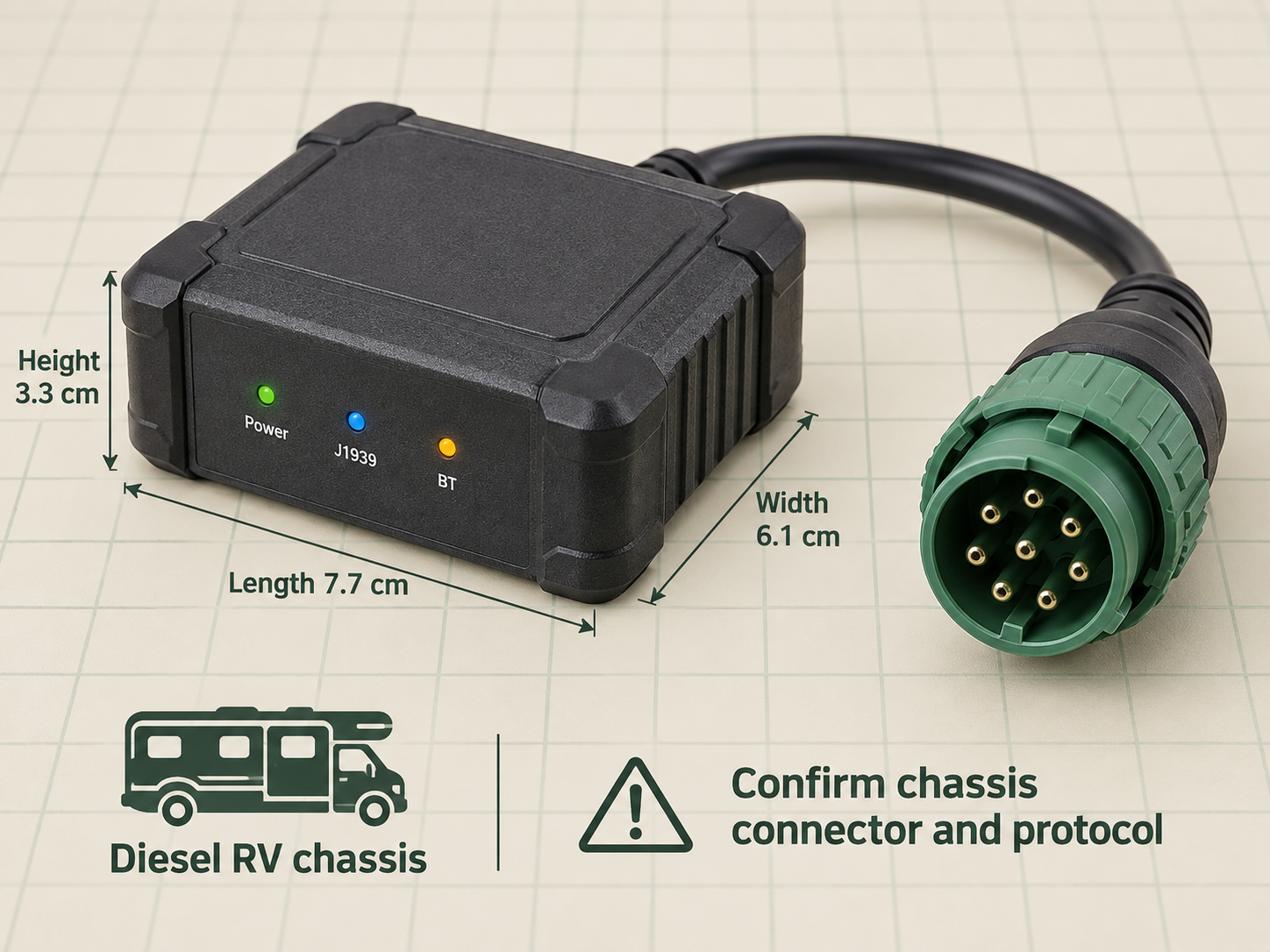

RVs
RVs: use the right interface within its limits
The chassis diagnostic network does not assess roof, plumbing, propane, house batteries, weight compliance, or living-space condition.
- Separate chassis and house systems
- Record handover and owner permission
- Scan only while safely parked
- Compare coolant and voltage under known conditions
- Inspect non-diagnostic systems separately

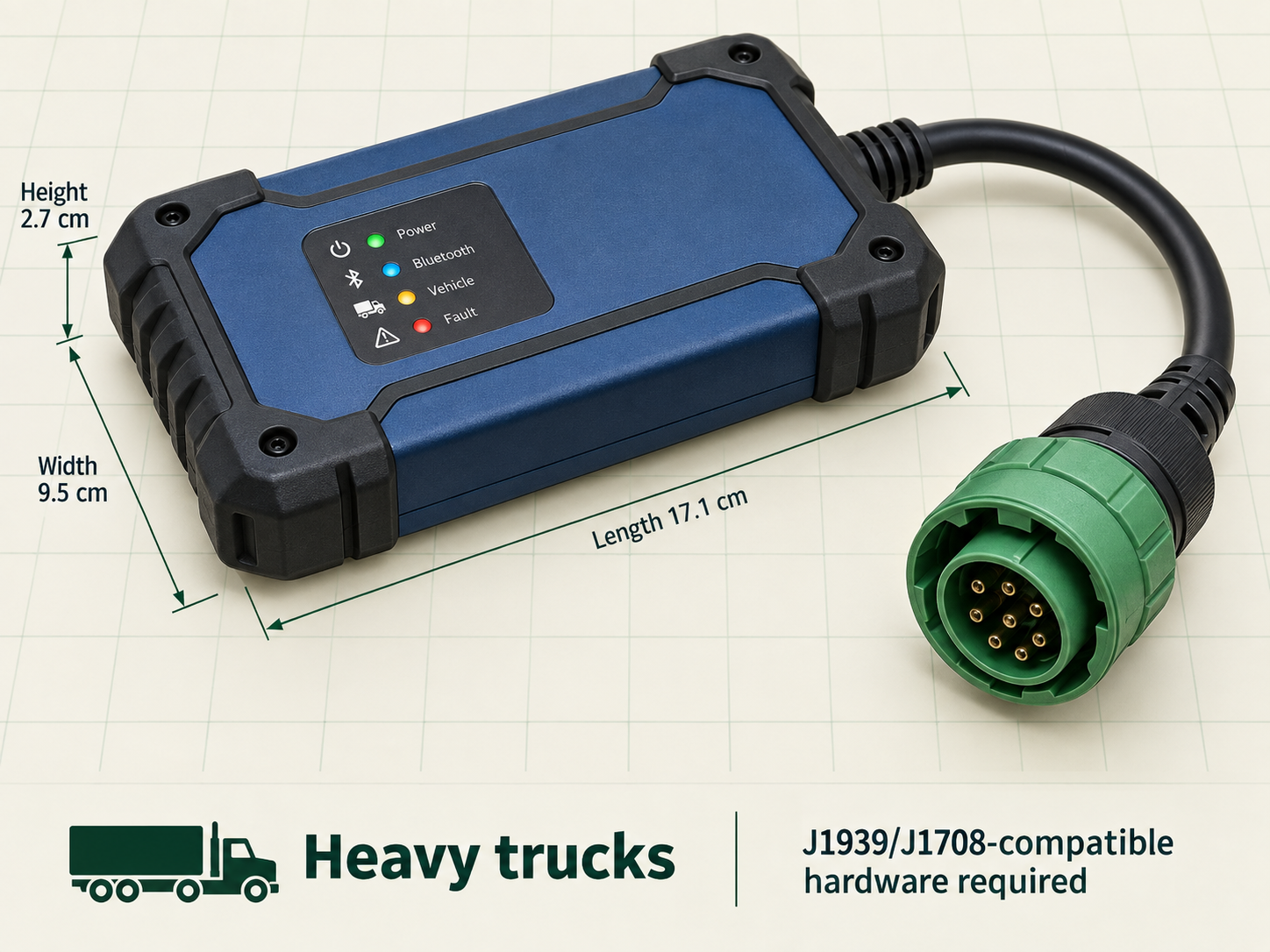

Heavy trucks
Heavy trucks: use the right interface within its limits
Heavy vehicles often use J1939 SPN/FMI information and 9-pin connectors. Five-character passenger-car codes are not interchangeable.
- Use compatible heavy-duty hardware
- Record engine and idle hours
- Preserve aftertreatment history
- Compare readings under similar loads
- Use qualified heavy-duty service support
Tractors
Tractors: use the right interface within its limits
Agricultural machines may expose engine and aftertreatment data through manufacturer-specific or heavy-duty interfaces, but coverage varies by model and attachment.
- Confirm port, protocol, and authorization
- Compare ECM hours with displayed hours
- Record load, temperature, soot, and regeneration context
- Inspect hydraulics and attachments separately
- Verify findings with agricultural service information
Regional and rental contexts
Regional and rental contexts: use the right interface within its limits
Inspection, emissions, privacy, rental, and roadworthiness rules differ by jurisdiction. The website does not determine legal compliance.
- Confirm local rules and rental terms
- Obtain explicit permission
- Preserve time-stamped handover evidence
- Avoid clearing data before inspection
- Use local qualified support when uncertain
Three boundaries
What the reading can and cannot establish
It cannot prove
That a named part failed, a repair is required, or the vehicle is safe to operate.
It should support
A documented inspection, a qualified diagnosis, or a better-informed maintenance conversation.
